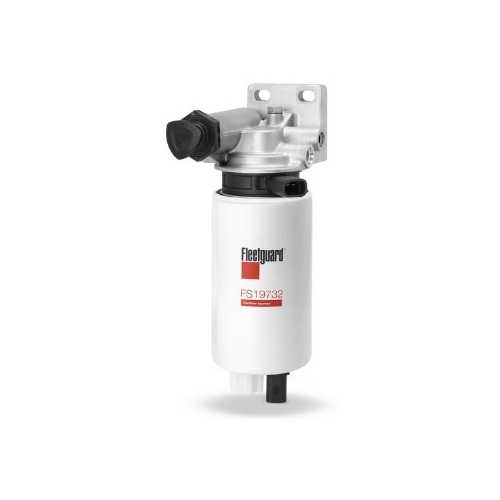

FS19732
Fuel/Water Separator
| Overall Height | 202.29 mm (7.964 in) | |
| Largest OD | 93.83 mm (3.694 in) | |
| Seam OD | 93.17 mm (3.668 in) | |
| Gasket OD | 71.88 mm (2.83 in) | |
| GASKET INSIDE DIAMETER | 62.48 mm (2.46 in) | |
| Thread Size | 1-14 UNS-2B | |
| Standpipe | NO | |
| EMULSIFIED WATER SEPARATION | 95 % (95 %) | |
| FREE WATER SEPARATION | 95 % (95 %) | |
| EFFICIENCY, TWA BY SAE J 1985 | 98.7 % (98.7 %) | |
| MICRON RATING BY SAE J 1985 | 25 micron (25 micron) | |
Hotline: (+84) 982 906 005
Description Product
Fuel/Water Separator
| Overall Height | 202.29 mm (7.964 in) | |
| Largest OD | 93.83 mm (3.694 in) | |
| Seam OD | 93.17 mm (3.668 in) | |
| Gasket OD | 71.88 mm (2.83 in) | |
| GASKET INSIDE DIAMETER | 62.48 mm (2.46 in) | |
| Thread Size | 1-14 UNS-2B | |
| Standpipe | NO | |
| EMULSIFIED WATER SEPARATION | 95 % (95 %) | |
| FREE WATER SEPARATION | 95 % (95 %) | |
| EFFICIENCY, TWA BY SAE J 1985 | 98.7 % (98.7 %) | |
| MICRON RATING BY SAE J 1985 | 25 micron (25 micron) | |
